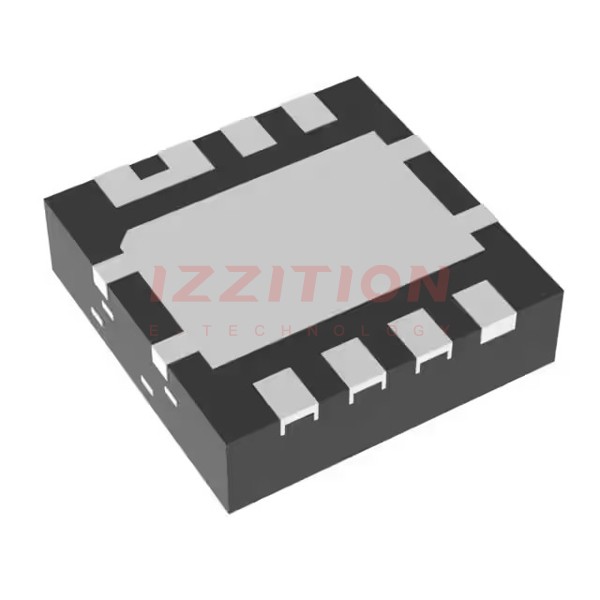

| Part Number | DMN3013LFG-7 | DMN3013LDG-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A (Ta), 15A (Tc) | 9.5A (Ta), 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 14.3mOhm @ 4A, 8V | 14.3mOhm @ 4A, 8V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.7nC @ 4.5V | 5.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 600pF @ 15V | 600pF @ 15V |
| Power - Max | 2.16W (Ta) | 2.16W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerLDFN | 8-PowerLDFN |
| Supplier Device Package | PowerDI3333-8 (Type D) | PowerDI3333-8 (Type D) |
