| Part Number | DMN3012LDG-7 | DMN3012LEG-7 | DMN3013LDG-7 | DMN3022LDG-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Half Bridge) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 20A (Tc) | 10A (Ta), 20A (Tc) | 9.5A (Ta), 15A (Tc) | 7.6A (Ta), 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 15A, 5V, 6mOhm @ 15A, 5V | 12mOhm @ 15A, 5V, 6mOhm @ 15A, 5V | 14.3mOhm @ 4A, 8V | 22mOhm @ 10A, 5V, 8mOhm @ 10A, 5V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 1.15V @ 250µA | 2.1V @ 250µA, 1.15V @ 250µA | 1.2V @ 250µA | 2.1V @ 250µA, 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.1nC @ 4.5V, 12.6nC @ 4.5V | 6.1nC @ 4.5V, 12.6nC @ 4.5V | 5.7nC @ 4.5V | 3.7nC @ 4.5V, 8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 850pF @ 15V, 1480pF @ 15V | 850pF @ 15V, 1480pF @ 15V | 600pF @ 15V | 481pF @ 15V, 996pF @ 15V |
| Power - Max | 2.2W (Tc) | 2.2W (Tc) | 2.16W (Ta) | 1.96W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

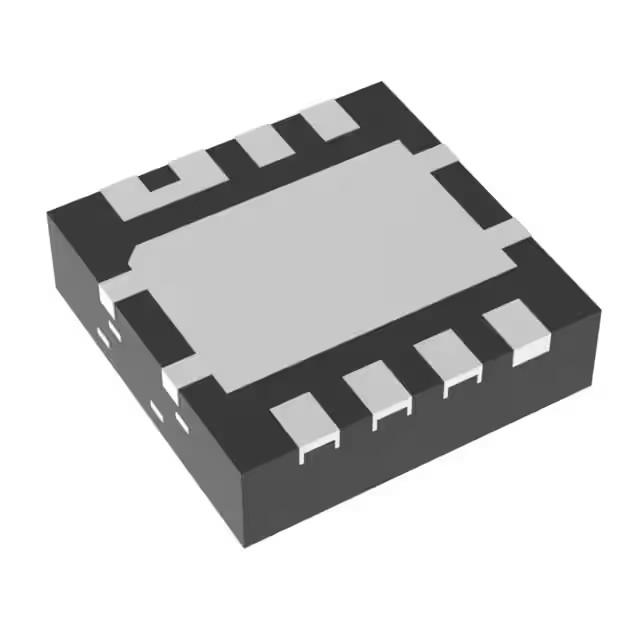

| Package / Case | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN |
| Supplier Device Package | PowerDI3333-8 (Type D) | PowerDI3333-8 (Type D) | PowerDI3333-8 (Type D) | PowerDI3333-8 (Type D) |
