Diodes Incorporated-DMN2991UDA-7B - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	450mA (Ta)
Rds On (Max) @ Id, Vgs:	990mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	350pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	21.5pF @ 16V
Power - Max:	310mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, No Lead
Supplier Device Package:	X2-DFN0806-6

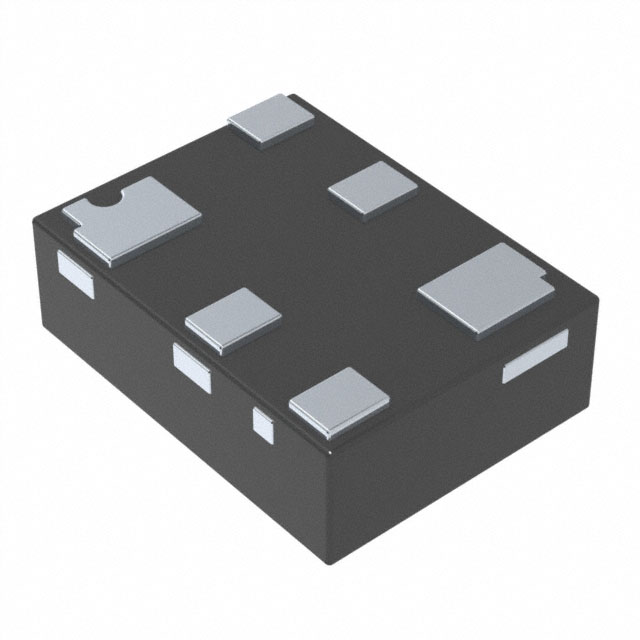

Diodes Incorporated DMN2991UDA-7B
