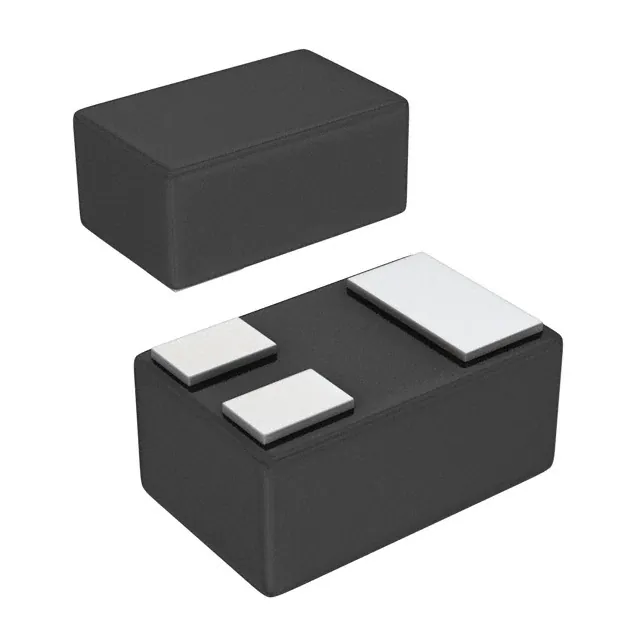

| Part Number | DMN2990UFB-7B | DMN2990UFZ-7B | DMN2990UFO-7B | DMN2990UFA-7B |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 780mA (Ta) | 250mA (Ta) | 750mA (Ta) | 510mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.2V, 4.5V | 1.5V, 4.5V | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250A | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.41 nC @ 4.5 V | 0.5 nC @ 4.5 V | 0.41 nC @ 4.5 V | 0.5 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 31 pF @ 15 V | 55.2 pF @ 16 V | 31 pF @ 15 V | 27.6 pF @ 16 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 520mW (Ta) | 320mW (Ta) | 840mW (Ta) | 400mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X1-DFN1006-3 | X2-DFN0606-3 | X2-DFN0604-3 | X2-DFN0806-3 |
| Package / Case | 3-UFDFN | 3-XFDFN | 3-XFDFN | 3-XFDFN |
