| Part Number | DMN2990UDJ-7 | DMN2991UDJ-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 450mA | 520mA (Ta) |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.5nC @ 4.5V | 350pC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 27.6pF @ 16V | 21.5pF @ 15V |
| Power - Max | 350mW | 400mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

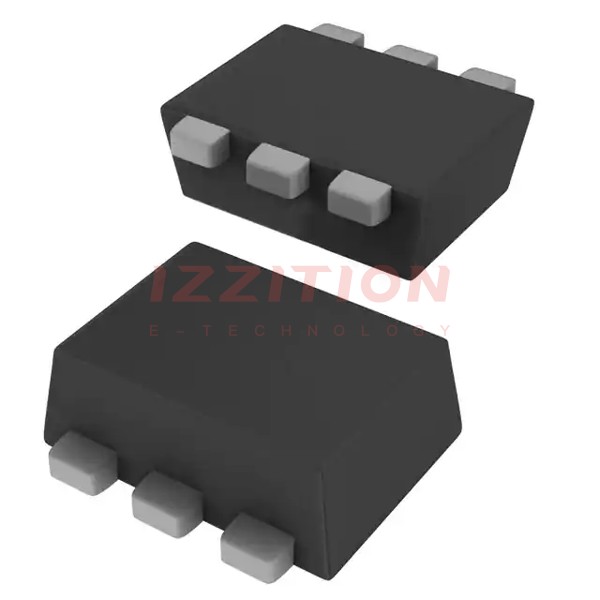

| Package / Case | SOT-963 | SOT-963 |
| Supplier Device Package | SOT-963 | SOT-963 |
