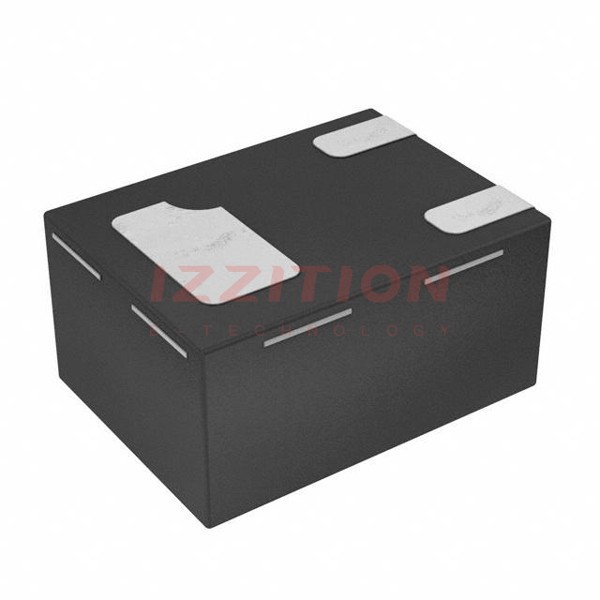

| Part Number | DMN25D0UFA-7B | DMN2550UFA-7B |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 240mA (Ta) | 600mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 4Ohm @ 400mA, 4.5V | 450mOhm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.36 nC @ 4.5 V | 0.88 nC @ 4.5 V |
| Vgs (Max) | 8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 27.9 pF @ 10 V | 52.5 pF @ 16 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 280mW (Ta) | 360mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | X2-DFN0806-3 | X2-DFN0806-3 |
| Package / Case | 3-XFDFN | 3-XFDFN |
