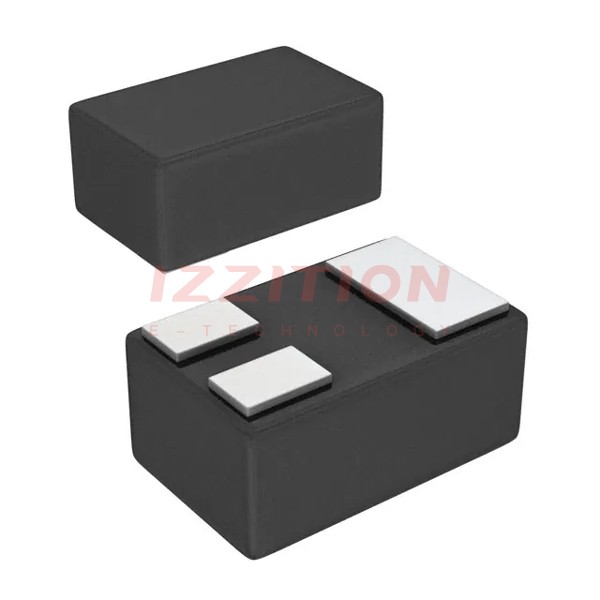

| Part Number | DMN2400UFB-7 | DMN2400UFD-7 | DMN2400UFB4-7 | DMN2600UFB-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Not For New Designs | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 750mA (Ta) | 900mA (Ta) | 750mA (Ta) | 1.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.5V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 600mA, 4.5V | 600mOhm @ 200mA, 4.5V | 550mOhm @ 600mA, 4.5V | 350mOhm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | 1V @ 250µA | 900mV @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.5 nC @ 4.5 V | 500 nC @ 4.5 V | 0.5 nC @ 4.5 V | 0.85 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 36 pF @ 16 V | 37 pF @ 16 V | 36 pF @ 16 V | 70.13 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 470mW (Ta) | 400mW (Ta) | 470mW (Ta) | 540mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X1-DFN1006-3 | X1-DFN1212-3 | X2-DFN1006-3 | X1-DFN1006-3 |
| Package / Case | 3-UFDFN | 3-UDFN | 3-XFDFN | 3-UFDFN |
