DMN2300UFL4-7
  • Share:

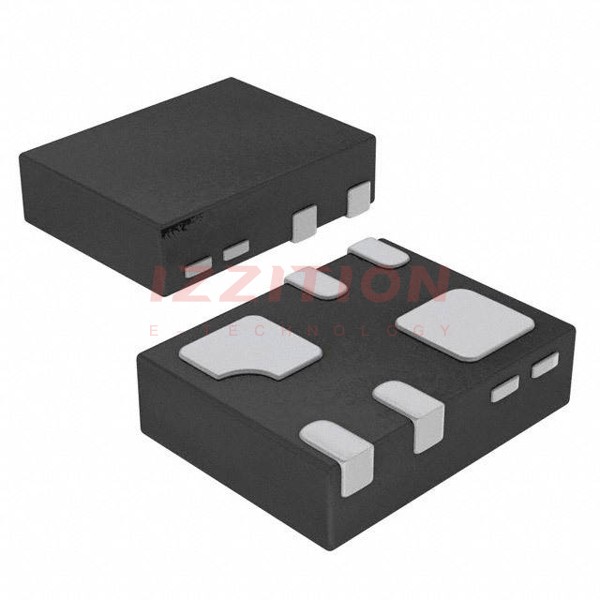

Diodes Incorporated DMN2300UFL4-7

Manufacturer No:
DMN2300UFL4-7
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
DMN2300UFL4-7 Datasheet
ECAD Model:
-
Description:
MOSFET 2N-CH 20V 2.11A 6DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:2.11A (Ta)
Rds On (Max) @ Id, Vgs:195mOhm @ 300mA, 4.5V
Vgs(th) (Max) @ Id:950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:128.6pF @ 25V
Power - Max:1.39W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-XFDFN Exposed Pad
Supplier Device Package:X2-DFN1310-6 (Type B)
0 Remaining View Similar

In Stock

$0.15
1,783

Please send RFQ , we will respond immediately.
