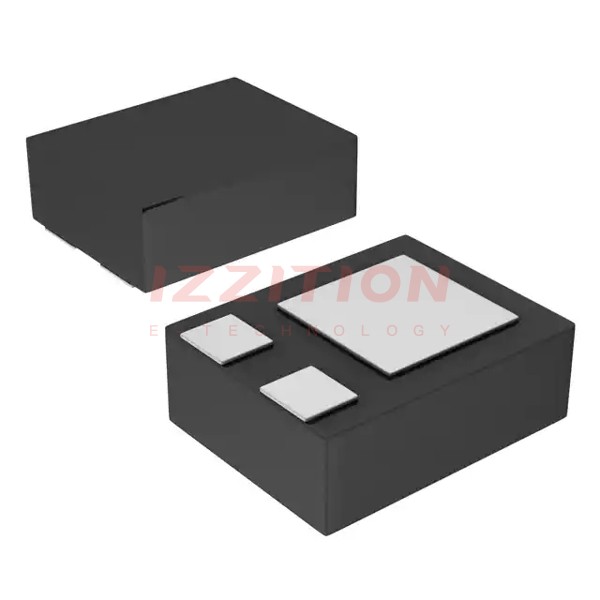

| Part Number | DMN2300UFB4-7B | DMN2320UFB4-7B | DMN2300UFB-7B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.3A (Ta) | 1A (Ta) | 1.32A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 175mOhm @ 300mA, 4.5V | 320mOhm @ 500mA, 4.5V | 175mOhm @ 300mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | 950mV @ 250µA | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.6 nC @ 4.5 V | 0.89 nC @ 4.5 V | 0.89 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 64.3 pF @ 25 V | 71 pF @ 10 V | 67.62 pF @ 20 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 520mW (Ta) | 468mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X2-DFN1006-3 | X2-DFN1006-3 | X1-DFN1006-3 |
| Package / Case | 3-XFDFN | 3-XFDFN | 3-UFDFN |
