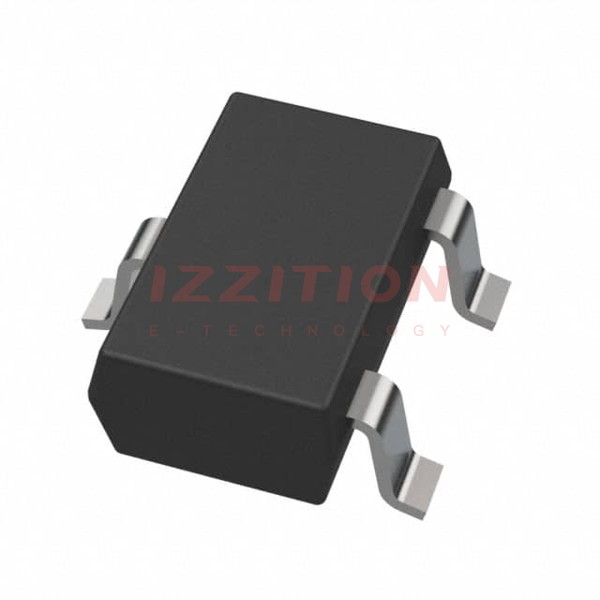

| Part Number | DMN2053UW-7 | DMN2058UW-7 | DMN2053U-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A (Ta) | 3.5A (Ta) | 6.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.8V, 10V | 1.8V, 10V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 2A, 4.5V | 42mOhm @ 3A, 10V | 29mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.2V @ 250µA | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.6 nC @ 4.25 V | 7.7 nC @ 10 V | 4.6 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 369 pF @ 10 V | 281 pF @ 10 V | 414 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 470mW (Ta) | 500mW (Ta) | 800mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Supplier Device Package | - | SOT-323 | SOT-23-3 |
| Package / Case | - | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
