Diodes Incorporated-DMN2044UCB4-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	40mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	47 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1400 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	720mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-WLB1010-4
Package / Case:	4-UFBGA, WLBGA

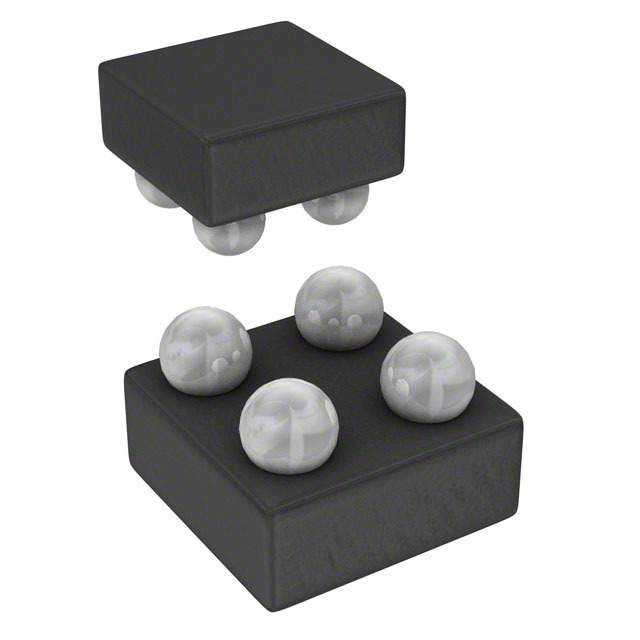

Diodes Incorporated DMN2044UCB4-7
