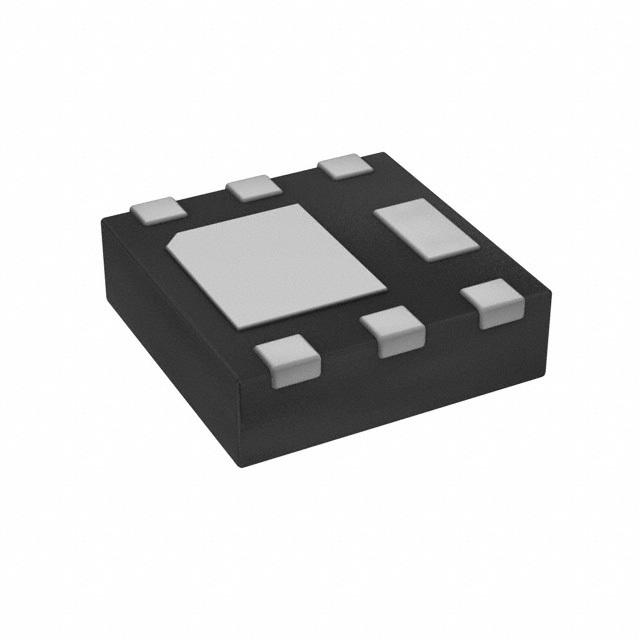

| Part Number | DMN2024UFDF-7 | DMN2028UFDF-7 | DMN2025UFDF-7 | DMN2022UFDF-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 7.1A (Ta) | 7.9A (Ta) | 6.5A (Ta) | 7.9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V | 1.8V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 4A, 4.5V | 25mOhm @ 4A, 4.5V | 25mOhm @ 4A, 4.5V | 22mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.9 nC @ 10 V | 18 nC @ 8 V | 12.3 nC @ 10 V | 18 nC @ 8 V |
| Vgs (Max) | ±10V | ±8V | ±10V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 647 pF @ 10 V | 907 pF @ 10 V | 486 pF @ 10 V | 907 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 960mW (Ta) | 660mW (Ta) | 700mW (Ta) | 660mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
