DMN2024UDH-7
  • Share:

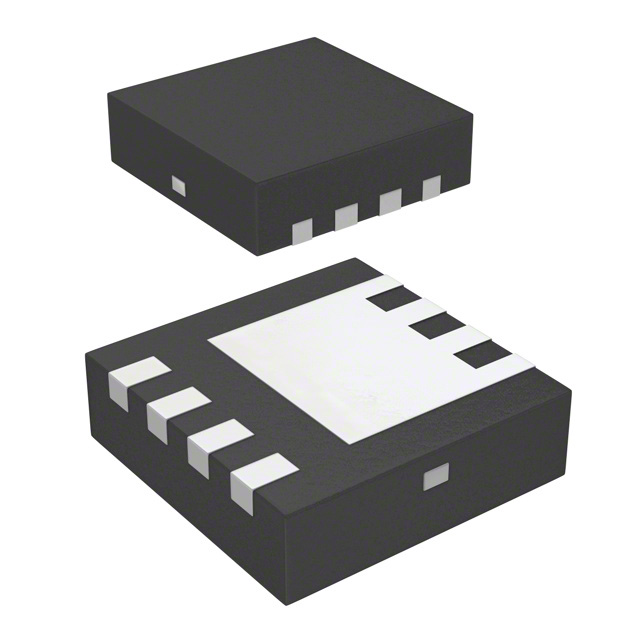

Diodes Incorporated DMN2024UDH-7

Manufacturer No:
DMN2024UDH-7
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
DMN2024UDH-7 Datasheet
ECAD Model:
-
Description:
MOSFET BVDSS: 8V-24V U-DFN3030-8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:5.2A (Ta)
Rds On (Max) @ Id, Vgs:23mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:647pF @ 10V
Power - Max:950mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerUDFN
Supplier Device Package:U-DFN3030-8
0 Remaining View Similar

In Stock

$0.22
1,486

Please send RFQ , we will respond immediately.
