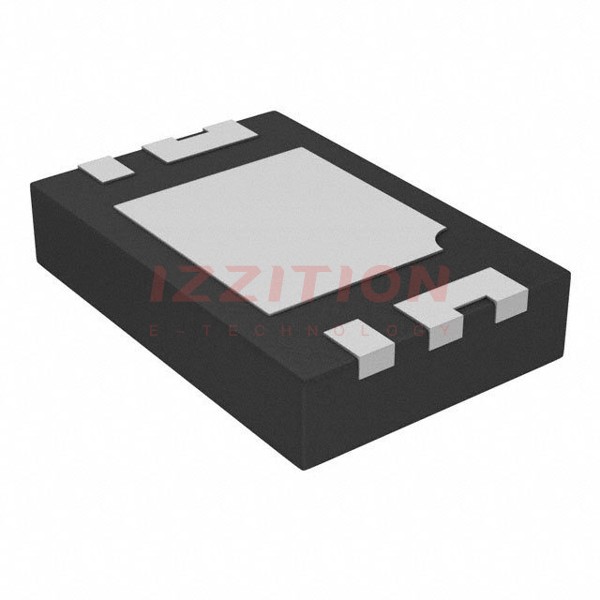

| Part Number | DMN2014LHAB-7 | DMN2016LHAB-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 9A | 7.5A |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 4A, 4.5V | 15.5mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 4.5V | 16nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1550pF @ 10V | 1550pF @ 10V |
| Power - Max | 800mW | 1.2W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2030-6 (Type B) | U-DFN2030-6 (Type B) |
