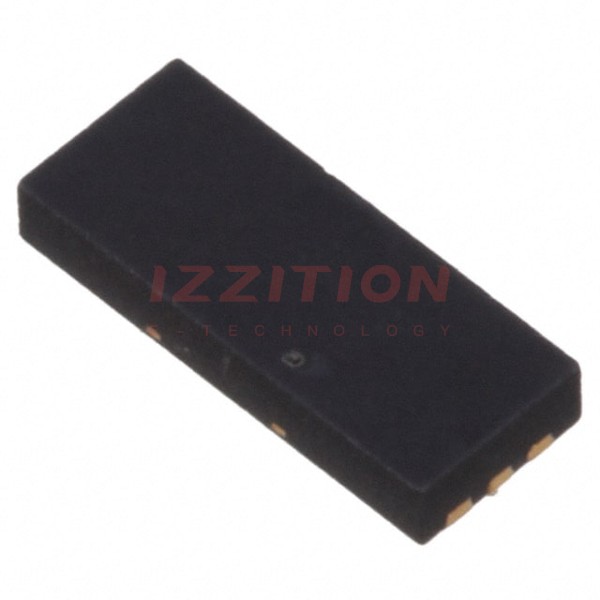

| Part Number | DMN2013UFX-7 | DMN2016UFX-7 | DMN2011UFX-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard | Standard |
| Drain to Source Voltage (Vdss) | 20V | 24V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 9.9A (Ta) | 12.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 8.5A, 4.5V | 15mOhm @ 6.5A, 4.5V | 9.5mOhm @ 10A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.5V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 57.4nC @ 8V | 14nC @ 4.5V | 56nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2607pF @ 10V | 950pF @ 10V | 2248pF @ 10V |
| Power - Max | 2.14W | 1.07W (Ta) | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VFDFN Exposed Pad | 4-VFDFN Exposed Pad | 4-VFDFN Exposed Pad |
| Supplier Device Package | W-DFN5020-6 | V-DFN2050-4 | V-DFN2050-4 |
