Diodes Incorporated-DMN1008UFDF-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	12.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	8mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	23.4 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	995 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	700mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

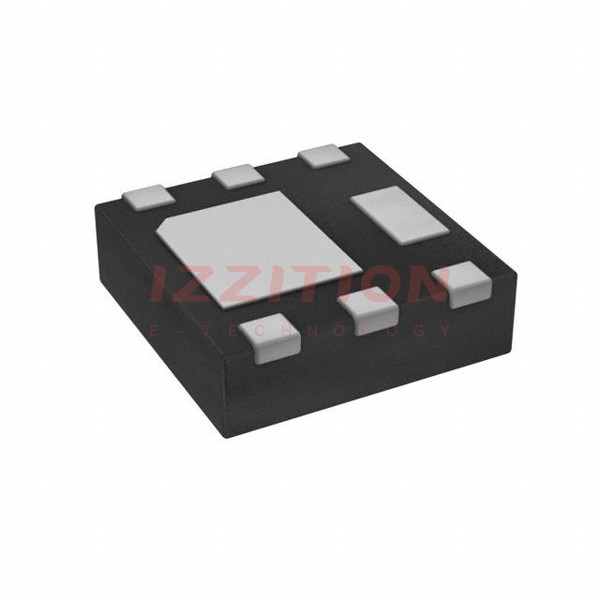

Supplier Device Package:	U-DFN2020-6 (Type F)
Package / Case:	6-UDFN Exposed Pad

Diodes Incorporated DMN1008UFDF-7
