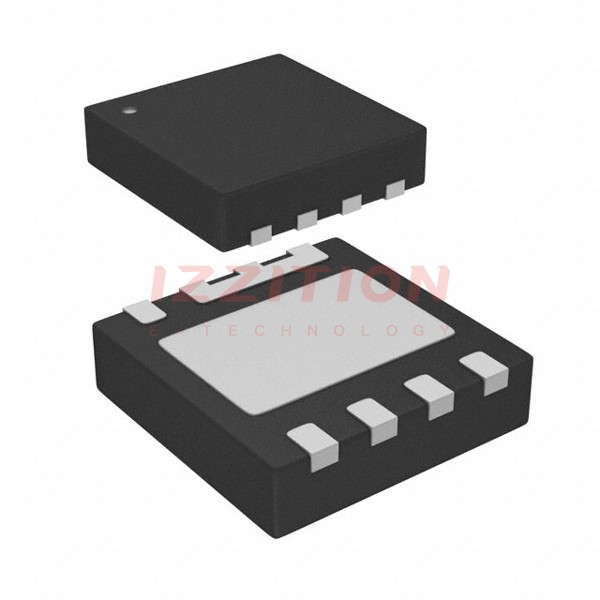

| Part Number | DML1006LDS-7 | DML1008LDS-7 | DML1007LDS-7 | DML1009LDS-7 | DML1005LDS-7 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 0.8V ~ 4V | 3.2V ~ 5.5V | 0.8V ~ 4V | 0.8V ~ 4V | 0.8V ~ 4V |
| Voltage - Supply (Vcc/Vdd) | - | Not Required | Not Required | - | - |
| Current - Output (Max) | 10A | 6A | 6A | 10A | 10A |
| Rds On (Typ) | 3.8mOhm, 2mOhm | 8mOhm (Max) | 8mOhm (Max) | 5mOhm | 3.8mOhm |
| Input Type | - | - | CMOS | - | - |
| Features | - | - | Load Discharge | - | - |
| Fault Protection | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | V-DFN3030-8 (Type R) | V-DFN3030-8 (Type R) | V-DFN3030-8 (Type R) | V-DFN3030-8 (Type R) | V-DFN3030-8 (Type R) |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
