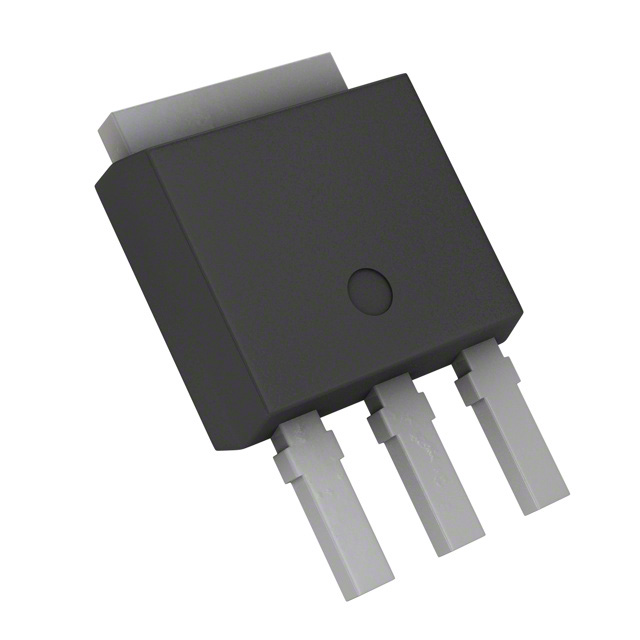

| Part Number | DMJ70H1D3SI3 | DMJ70H1D3SJ3 | DMJ70H1D3SH3 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V | 700 V | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 4.6A (Tc) | 4.6A (Tc) | 4.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 1.3Ohm @ 2.5A, 10V | 1.3Ohm @ 2.5A, 10V | 1.3Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13.9 nC @ 10 V | 13.9 nC @ 10 V | 13.9 nC @ 10 V |
| Vgs (Max) | ±30V | - | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 351 pF @ 50 V | 351 pF @ 50 V | 351 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 41W (Tc) | 41W (Tc) | 41W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 155°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-251 | TO-251 | TO-251 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Stub Leads, IPak |
