| Part Number | DMG1023UVQ-7 | DMG1023UV-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.03A (Ta) | 1.03A |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 430mA, 4.5V | 750mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 622pC @ 4.5V | 0.62nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 59pF @ 16V | 59.76pF @ 16V |
| Power - Max | 530mW (Ta) | 530mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

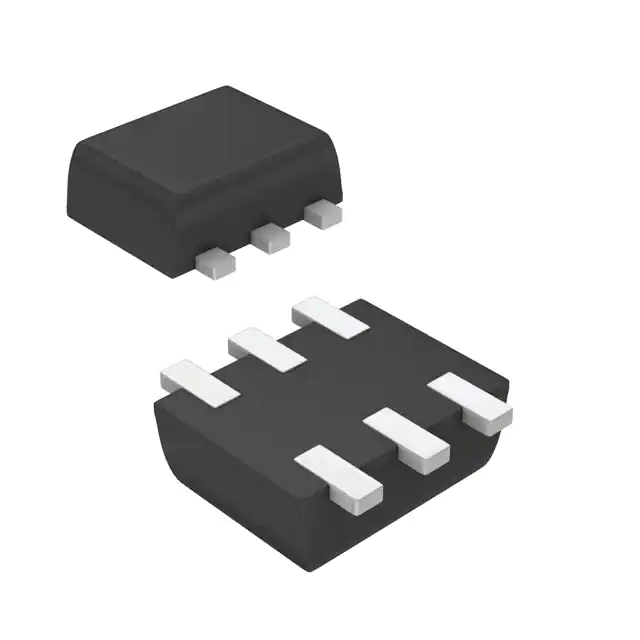

| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 |
