DMG1023UVQ-13
  • Share:

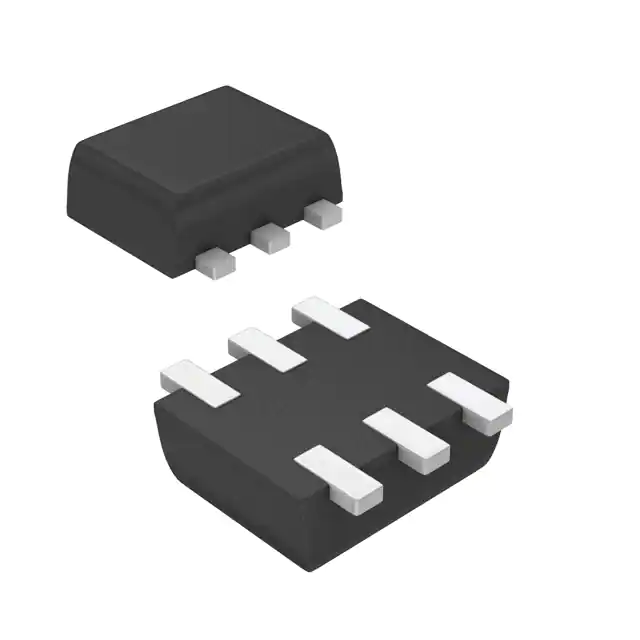

Diodes Incorporated DMG1023UVQ-13

Manufacturer No:
DMG1023UVQ-13
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
DMG1023UVQ-13 Datasheet
ECAD Model:
-
Description:
MOSFET BVDSS: 8V-24V SOT563
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:2 P-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:1.03A (Ta)
Rds On (Max) @ Id, Vgs:750mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:622pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:59pF @ 16V
Power - Max:530mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SOT-563
0 Remaining View Similar

In Stock

$0.09
5,829

Please send RFQ , we will respond immediately.
