| Part Number | DMG1023UV-7 | DMG1024UV-7 | DMG1026UV-7 | DMG1023UVQ-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V | 60V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.03A | 1.38A | 410mA | 1.03A (Ta) |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 430mA, 4.5V | 450mOhm @ 600mA, 4.5V | 1.8Ohm @ 500mA, 10V | 750mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1.8V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.62nC @ 4.5V | 0.74nC @ 4.5V | 0.45nC @ 10V | 622pC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 59.76pF @ 16V | 60.67pF @ 16V | 32pF @ 25V | 59pF @ 16V |
| Power - Max | 530mW | 530mW | 580mW | 530mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

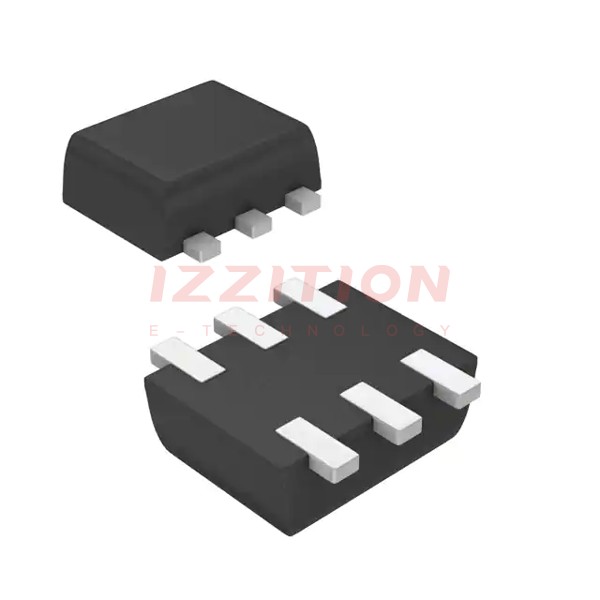

| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 | SOT-563 | SOT-563 |
