| Part Number | DMC2991UDJ-7 | DMC2991UDJ-7B | DMC2990UDJ-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | N and P-Channel Complementary | N and P-Channel Complementary | N and P-Channel |
| FET Feature | Standard | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta), 360mA (Ta) | 500mA (Ta), 360mA (Ta) | 450mA, 310mA |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V, 1.9Ohm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V, 1.9Ohm @ 100mA, 4.5V | 990mOhm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.35nC @ 4.5V, 0.3nC @ 4.5V | 0.35nC @ 4.5V, 0.3nC @ 4.5V | 0.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 21.5pF @ 15V, 17pF @ 16V | 21.5pF @ 15V, 17pF @ 16V | 27.6pF @ 15V |
| Power - Max | 380mW (Ta) | 380mW (Ta) | 350mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

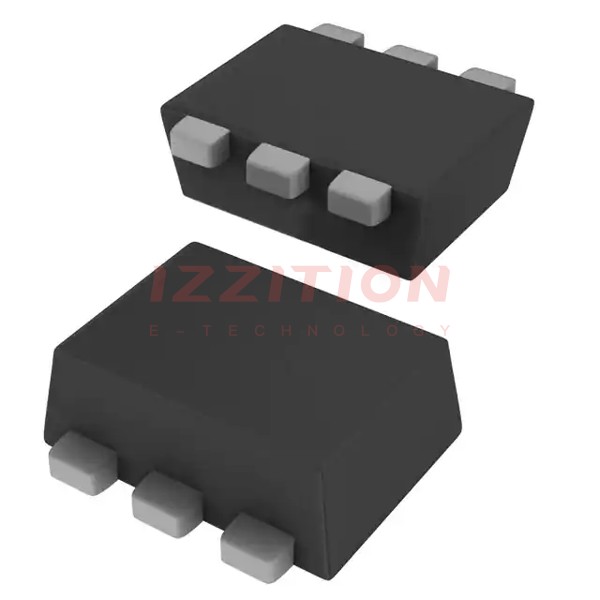

| Package / Case | SOT-963 | SOT-963 | SOT-963 |
| Supplier Device Package | SOT-963 | SOT-963 | SOT-963 |
