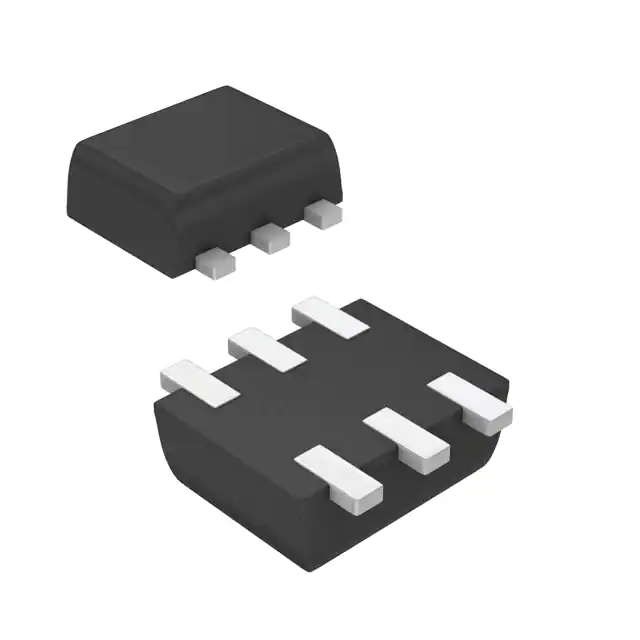

| Part Number | DMC2710UV-7 | DMC2710UVT-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N and P-Channel Complementary | N and P-Channel Complementary |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A (Ta), 800mA (Ta) | 1.2A (Ta), 900mA (Ta) |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 600mA, 4.5V, 700mOhm @ 430mA, 4.5V | 400mOhm @ 600mA, 4.5V, 700mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 600pC @ 4.5V, 700pC @ 4.5V | 600pC @ 4.5V, 700pC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 42pF @ 16V, 49pF @ 16V | 42pF @ 16V, 49pF @ 16V |
| Power - Max | 460mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-563 | TSOT-23-6 |
