Diodes Incorporated-DMC2041UFDB-7 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	4.7A, 3.2A
Rds On (Max) @ Id, Vgs:	40mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id:	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds:	713pF @ 10V
Power - Max:	1.4W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

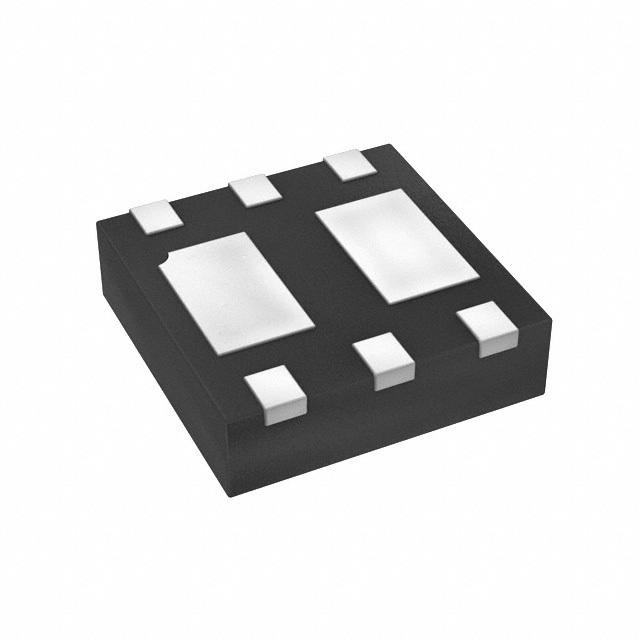

Package / Case:	6-UDFN Exposed Pad
Supplier Device Package:	U-DFN2020-6 (Type B)

Diodes Incorporated DMC2041UFDB-7
