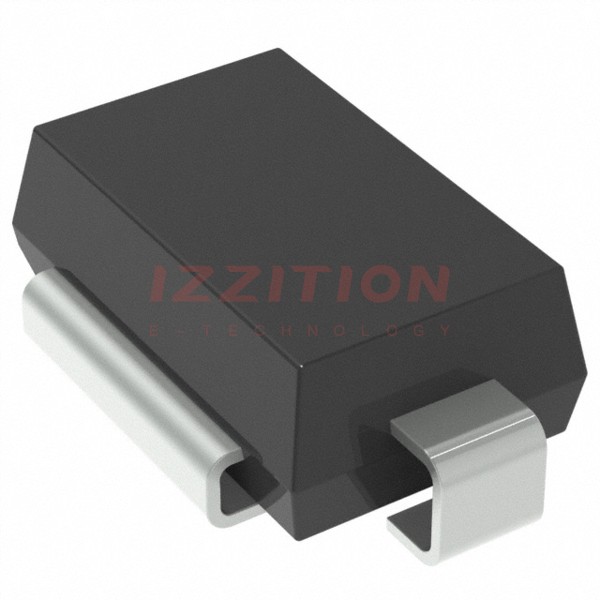

| Part Number | DM5W20A-13 | DM5W20AQ-13 | DM5W22A-13 | DM5W24A-13 | DM5W26A-13 | DM5W28A-13 | DM5W30A-13 | DM6W20A-13 | DM8W20A-13 | DM5W10A-13 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 20V | 22V | 24V | 26V | 28V | 30V | 20V | 20V | 10V |
| Voltage - Breakdown (Min) | 22.2V | 22.2V | 24.4V | 26.7V | 28.9V | 31.1V | 33.3V | 22.2V | 22.2V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 32.4V | 35.5V | 38.9V | 42.1V | 45.4V | 48.4V | 32.4V | 32.4V | 17V |
| Current - Peak Pulse (10/1000µs) | 111A | 111A | 101A | 93A | 86A | 79A | 74A | 142A | 204A | 211A |
| Power - Peak Pulse | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 4600W (4.6kW) | 6600W (6.6kW) | 3600W (3.6kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB | DO-218AB |
| Supplier Device Package | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 | DO-218 |
