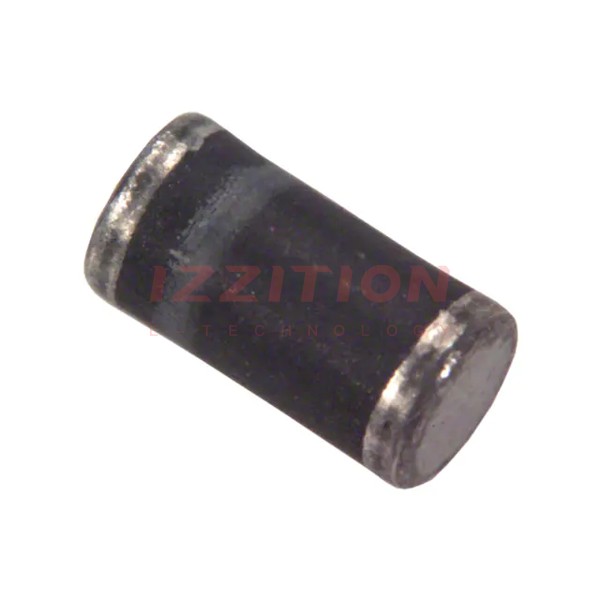

| Part Number | DL4935-13-F | DL4936-13-F | DL4937-13-F | DL4933-13-F | DL4934-13-F |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 400 V | 600 V | 50 V | 100 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A | 1.2 V @ 1 A | 1.2 V @ 1 A | 1.2 V @ 1 A | 1.2 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns | 200 ns | 200 ns | 200 ns | 200 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 50 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | MELF | MELF | MELF | MELF | MELF |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
