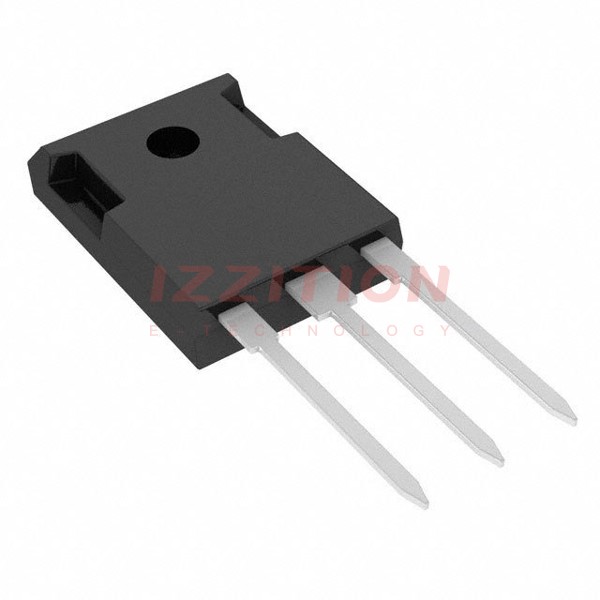

| Part Number | DGTD65T50S1PT | DGTD65T40S1PT |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Last Time Buy | Active |
| IGBT Type | Field Stop | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 100 A | 80 A |
| Current - Collector Pulsed (Icm) | 200 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 50A | 2.4V @ 15V, 40A |
| Power - Max | 375 W | 341 W |
| Switching Energy | 770µJ (on), 550µJ (off) | 1.15mJ (on), 350µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 287 nC | 219 nC |
| Td (on/off) @ 25°C | 58ns/328ns | 58ns/245ns |
| Test Condition | 400V, 50A, 7.9Ohm, 15V | 400V, 40A, 7.9Ohm, 15V |
| Reverse Recovery Time (trr) | 80 ns | 145 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 |
