| Part Number | DGTD65T40S1PT | DGTD65T40S2PT | DGTD65T50S1PT |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Last Time Buy | Last Time Buy |
| IGBT Type | Field Stop | Field Stop | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A | 100 A |
| Current - Collector Pulsed (Icm) | 160 A | 120 A | 200 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A | 2.3V @ 15V, 40A | 2.4V @ 15V, 50A |
| Power - Max | 341 W | 230 W | 375 W |
| Switching Energy | 1.15mJ (on), 350µJ (off) | 500µJ (on), 400µJ (off) | 770µJ (on), 550µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 219 nC | 60 nC | 287 nC |
| Td (on/off) @ 25°C | 58ns/245ns | 6ns/55ns | 58ns/328ns |
| Test Condition | 400V, 40A, 7.9Ohm, 15V | 400V, 40A, 10Ohm, 15V | 400V, 50A, 7.9Ohm, 15V |
| Reverse Recovery Time (trr) | 145 ns | 60 ns | 80 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

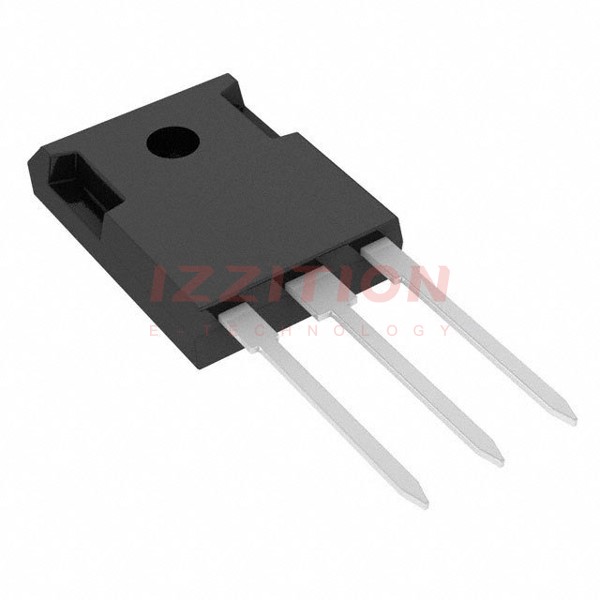

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 |
