Diodes Incorporated-DGTD65T15H2TF - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 15A
Power - Max:	48 W
Switching Energy:	270µJ (on), 86µJ (off)
Input Type:	Standard
Gate Charge:	61 nC
Td (on/off) @ 25°C:	19ns/128ns
Test Condition:	400V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr):	150 ns
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package:	ITO-220AB

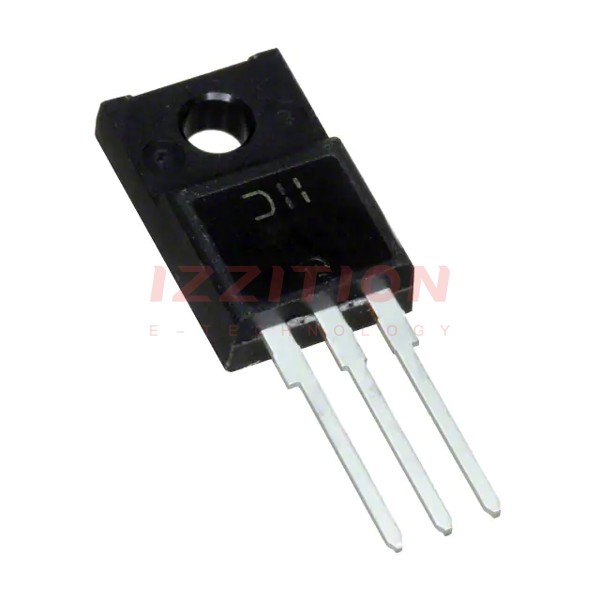

Diodes Incorporated DGTD65T15H2TF
