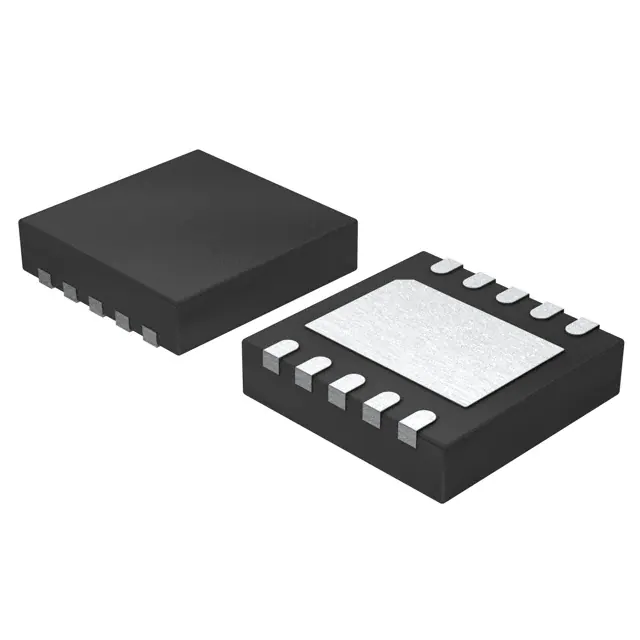

| Part Number | DGD0504FN-7 | DGD0506FN-7 | DGD0507FN-7 | DGD0503FN-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Not For New Designs | Obsolete | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Independent | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 8V ~ 14V | 8V ~ 14V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V | 1V, 2.5V | 0.8V, 2.4V | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA | 1.5A, 2.5A | 1.5A, 2A | 290mA, 600mA |
| Input Type | Non-Inverting | Non-Inverting | CMOS/TTL | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V | 50 V | 50 V | 100 V |
| Rise / Fall Time (Typ) | 70ns, 35ns | 17ns, 12ns | 23ns, 18ns | 70ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | W-DFN3030-10 (Type TH) | W-DFN3030-10 (Type TH) | W-DFN3030-10 | W-DFN3030-10 (Type TH) |
