Diodes Incorporated-DFLF1800-13 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.35 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	500 ns
Current - Reverse Leakage @ Vr:	10 µA @ 800 V
Capacitance @ Vr, F:	7pF @ 4V, 1MHz
Mounting Type:	Surface Mount

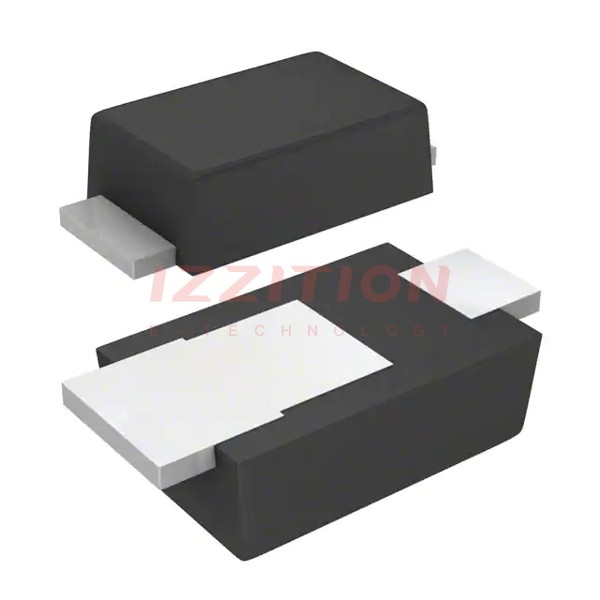

Package / Case:	POWERDI®123
Supplier Device Package:	PowerDI™ 123
Operating Temperature - Junction:	-65°C ~ 150°C

Diodes Incorporated DFLF1800-13
