Please send RFQ , we will respond immediately.

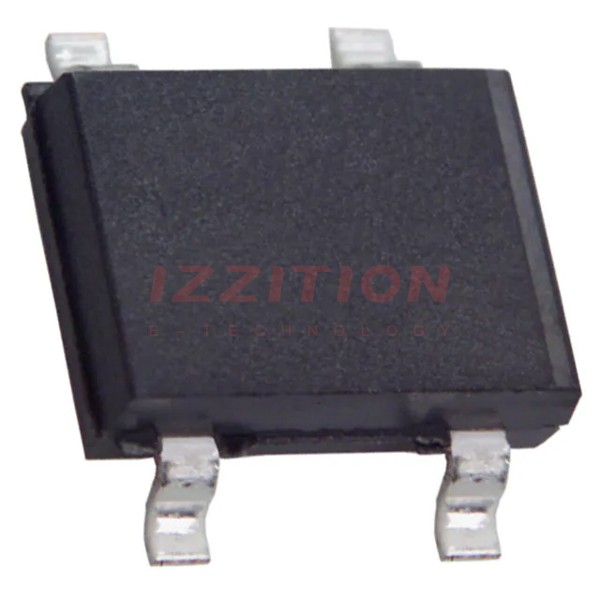

| Part Number | DF1506S-T | DF1508S-T | DF1501S-T | DF1502S-T | DF1504S-T | DF1506S-G |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Comchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 600 V | 800 V | 100 V | 200 V | 400 V | 600 V |
| Current - Average Rectified (Io) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1.5 A | 1.1 V @ 1.5 A | 1.1 V @ 1.5 A | 1.1 V @ 1.5 A | 1.1 V @ 1.5 A | 1.1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 10 µA @ 800 V | 10 µA @ 100 V | 10 µA @ 200 V | 10 µA @ 400 V | 10 µA @ 600 V |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Supplier Device Package | DF-S | DF-S | DF-S | DF-S | DF-S | DFS |
