Diodes Incorporated-DF1506S - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	DF1506S	DF1508S	DF1501S	DF1502S	DF1504S	DF1506M
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr	10 µA @ 600 V	10 µA @ 800 V	10 µA @ 100 V	10 µA @ 100 V	10 µA @ 400 V	10 µA @ 600 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Through Hole
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-EDIP (0.300", 7.62mm)
Supplier Device Package	DF-S	DF-S	DF-S	DF-S	DF-S	DFM

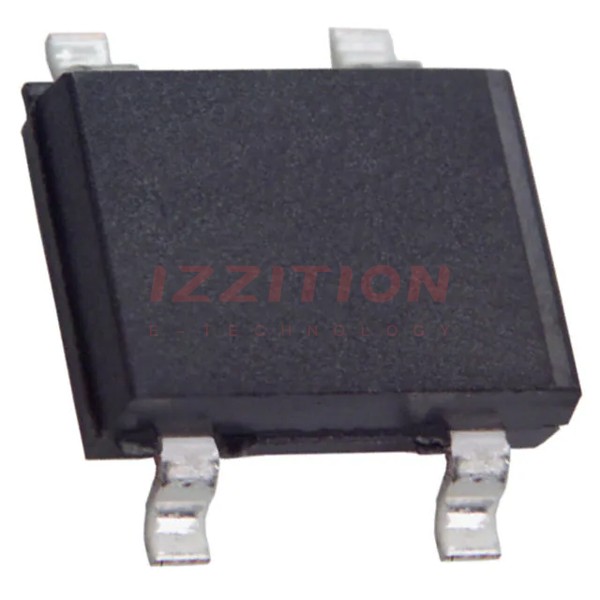

Diodes Incorporated DF1506S

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	DF-S
