Diodes Incorporated-DF1506M - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	DF1506M	DF1506S	DF1508M	DF1501M	DF1502M	DF1504M
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	600 V	800 V	100 V	200 V	400 V
Current - Average Rectified (Io)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr	10 µA @ 600 V	10 µA @ 600 V	10 µA @ 800 V	10 µA @ 100 V	10 µA @ 100 V	10 µA @ 400 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Surface Mount	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)	4-SMD, Gull Wing	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)
Supplier Device Package	DFM	DF-S	DFM	DFM	DFM	DFM

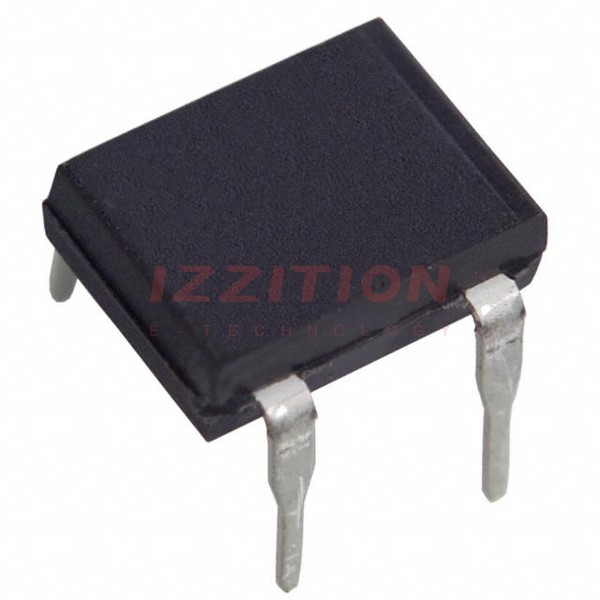

Diodes Incorporated DF1506M

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-EDIP (0.300", 7.62mm)
Supplier Device Package:	DFM
