| Part Number | DDZ9701T-7 | DDZ9709T-7 | DDZ9711T-7 | DDZ9703T-7 | DDZ9702T-7 | DDZ9705T-7 | DDZ9707T-7 | DDZ9708T-7 | DDZ9700T-7 | DDZ9701-7 | DDZ9701Q-7 | DDZ9701S-7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 14 V | 24 V | 27 V | 16 V | 15 V | 18 V | 20 V | 22 V | 13 V | 14 V | 14 V | 14 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 500 mW | 500 mW | 200 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 10.6 V | 50 nA @ 18.2 V | 50 nA @ 20.4 V | 50 nA @ 12.1 V | 50 nA @ 11.4 V | 50 nA @ 13.6 V | 50 nA @ 15.2 V | 50 nA @ 16.7 V | 50 nA @ 9.8 V | 50 nA @ 10.6 V | 50 nA @ 10.6 V | 50 nA @ 10.6 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

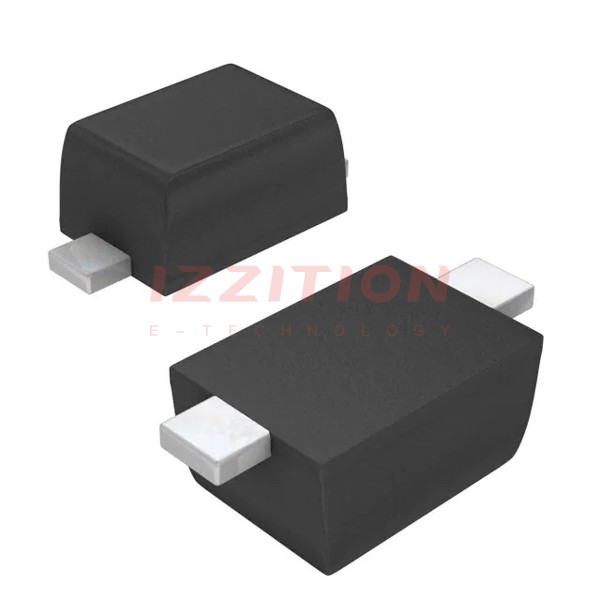

| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SOD-123 | SOD-123 | SC-76, SOD-323 |
| Supplier Device Package | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-123 | SOD-123 | SOD-323 |
