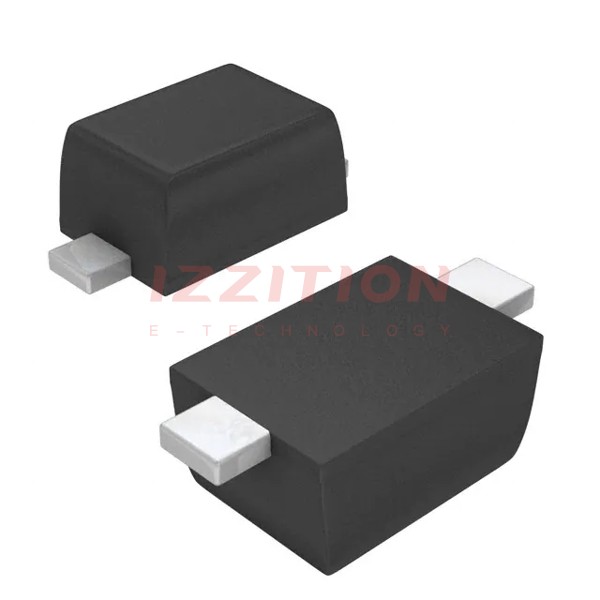

| Part Number | DDZ9694T-7 | DDZ9696T-7 | DDZ9697T-7 | DDZ9698T-7 | DDZ9699T-7 | DDZ9690T-7 | DDZ9691T-7 | DDZ9692T-7 | DDZ9693T-7 | DDZ9694-7 | DDZ9694Q-7 | DDZ9694S-7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Voltage - Zener (Nom) (Vz) | 8.2 V | 9.1 V | 10 V | 11 V | 12 V | 5.6 V | 6.2 V | 6.8 V | 7.5 V | 8.2 V | 8.2 V | 8.2 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 150 mW | 500 mW | 500 mW | 200 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 nA @ 6.2 V | 100 nA @ 6.9 V | 100 nA @ 7.6 V | 50 nA @ 8.4 V | 50 nA @ 9.1 V | 2 µA @ 4 V | 1 µA @ 5 V | 100 nA @ 5.1 V | 100 nA @ 5.7 V | 100 nA @ 6.2 V | 100 nA @ 6.2 V | 100 nA @ 6.2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SOD-123 | SOD-123 | SC-76, SOD-323 |
| Supplier Device Package | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-123 | SOD-123 | SOD-323 |
