Diodes Incorporated-DDTC143ZLP-7 - Transistors - Bipolar (BJT) - Single, Pre-Biased Product Specifications and Latest Quotes

Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	4.7 kOhms
Resistor - Emitter Base (R2):	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	180 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic:	200mV @ 5mA, 50mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	250 MHz
Power - Max:	250 mW
Mounting Type:	Surface Mount

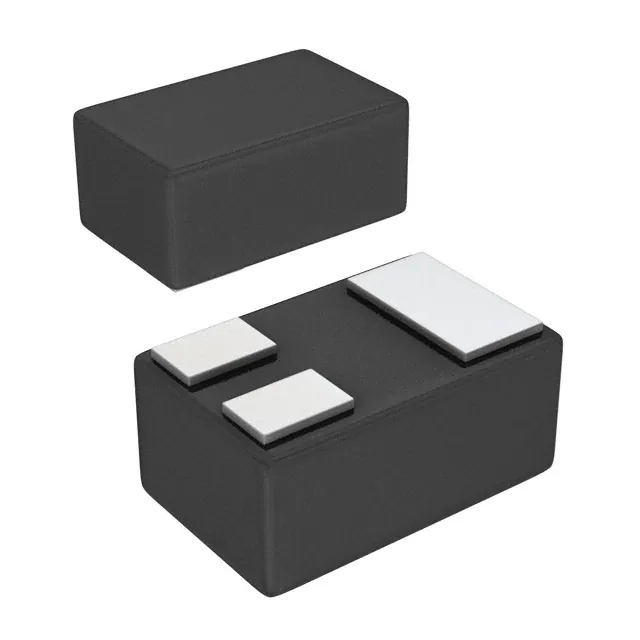

Package / Case:	3-UFDFN
Supplier Device Package:	X1-DFN1006-3

Diodes Incorporated DDTC143ZLP-7
