| Part Number | DDTC115TKA-7-F | DDTC115TUA-7-F | DDTC125TKA-7-F | DDTC113TKA-7-F | DDTC114TKA-7-F | DDTC115EKA-7-F | DDTC115GKA-7-F | DDTC115TCA-7-F |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 100 kOhms | 100 kOhms | 200 kOhms | 1 kOhms | 10 kOhms | 100 kOhms | - | 100 kOhms |
| Resistor - Emitter Base (R2) | - | - | - | - | - | 100 kOhms | 100 kOhms | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 82 @ 5mA, 5V | 82 @ 5mA, 5V | 100 @ 1mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100µA, 1mA | 300mV @ 100µA, 1mA | 300mV @ 50µA, 500µA | 300mV @ 1mA, 10mA | 300mV @ 100µA, 1mA | 300mV @ 250µA, 5mA | 300mV @ 500µA, 10mA | 300mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 500nA (ICBO) | 500nA (ICBO) | 500nA (ICBO) | 500nA (ICBO) | 500nA (ICBO) | 500nA | 500nA (ICBO) | 500nA (ICBO) |
| Frequency - Transition | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

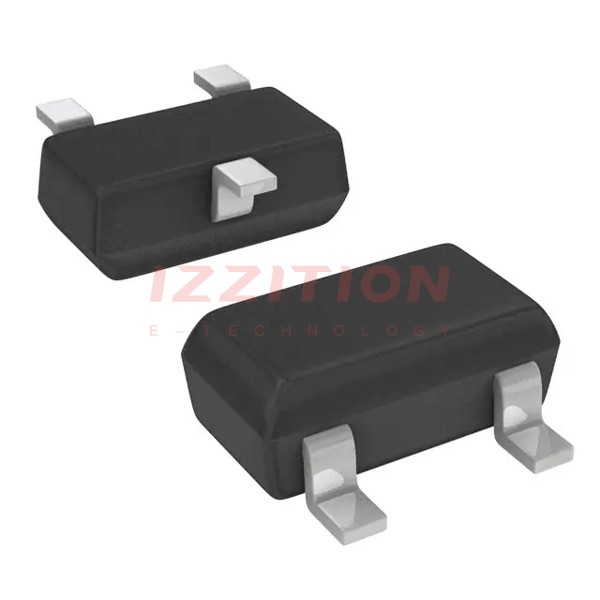

| Package / Case | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59-3 | SOT-323 | SC-59-3 | SC-59-3 | SC-59-3 | SC-59-3 | SC-59-3 | SOT-23-3 |
