Please send RFQ , we will respond immediately.
| Part Number | DDTC114YLP-7 | DDTC114ELP-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Resistor - Base (R1) | 10 kOhms | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms | 10 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 50mA, 5V | 100 @ 50mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA | 300mV @ 10mA, 70mA |
| Current - Collector Cutoff (Max) | 500nA | 1µA |
| Frequency - Transition | 250 MHz | 250 MHz |
| Power - Max | 250 mW | 250 mW |
| Mounting Type | Surface Mount | Surface Mount |

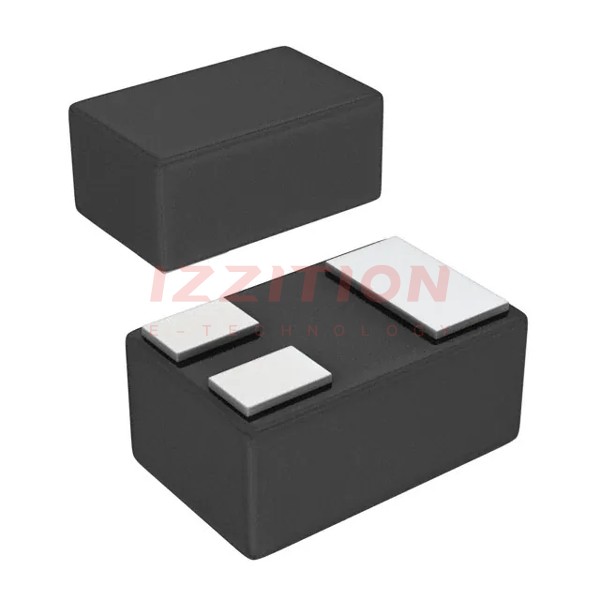

| Package / Case | 3-UFDFN | 3-UFDFN |
| Supplier Device Package | X1-DFN1006-3 | X1-DFN1006-3 |
