| Part Number | DCX122TH-7 | DCX142TH-7 | DCX122LH-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V |
| Resistor - Base (R1) | 220Ohms | 470Ohms | 220Ohms |
| Resistor - Emitter Base (R2) | - | - | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 56 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA | 300mV @ 250µA, 5mA | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | - | - | - |
| Frequency - Transition | 200MHz | 200MHz | 200MHz |
| Power - Max | 150mW | 200mW | 150mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

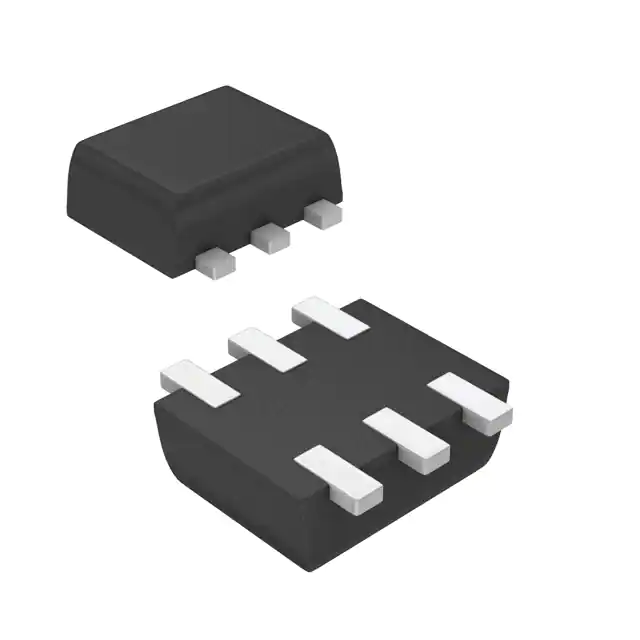

| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 | SOT-563 |
