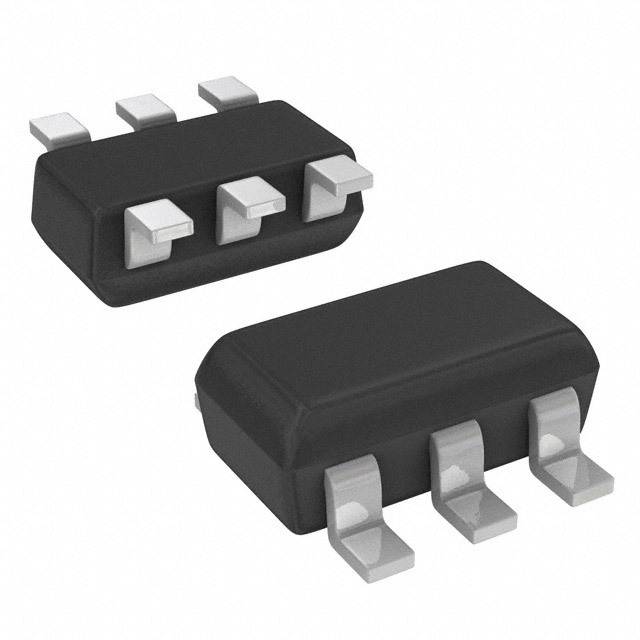

| Part Number | DCX114TK-7-F | DCX114TU-7-F | DCX114YK-7-F | DCX114EK-7-F |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 10kOhms | 10kOhms | 10kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | - | - | 47kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 68 @ 10mA, 5V | 30 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100µA, 1mA | 300mV @ 100µA, 1mA | 300mV @ 250µA, 5mA | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | - | - | 500nA | 500nA |
| Frequency - Transition | 250MHz | 250MHz | 250MHz | 250MHz |
| Power - Max | 300mW | 200mW | 300mW | 300mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74, SOT-457 | 6-TSSOP, SC-88, SOT-363 | SC-74, SOT-457 | SC-74, SOT-457 |
| Supplier Device Package | SC-74R | SOT-363 | SC-74R | SC-74R |
