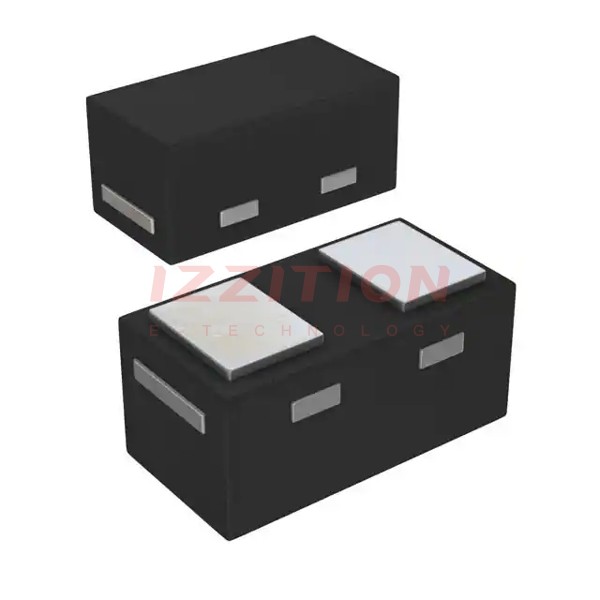

| Part Number | D5V0X1B2LP3-7 | D7V0X1B2LP3-7 | D5V0L1B2LP3-7 | D5V0P1B2LP3-7 | D5V0Q1B2LP3-7 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 7V (Max) | 5V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 7V | 8V | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V | 14V | 14V | 13V | 11V |
| Current - Peak Pulse (10/1000µs) | 1.5A (8/20µs) | 1.5A (8/20µs) | 6A (8/20µs) | 4A (8/20µs) | 3A (8/20µs) |
| Power - Peak Pulse | - | - | 84W | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 0.3pF @ 1MHz | 0.3pF @ 1MHz | 15pF @ 1MHz | 8pF @ 1MHz | 6pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | X3-DFN0603-2 | X2-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 |
