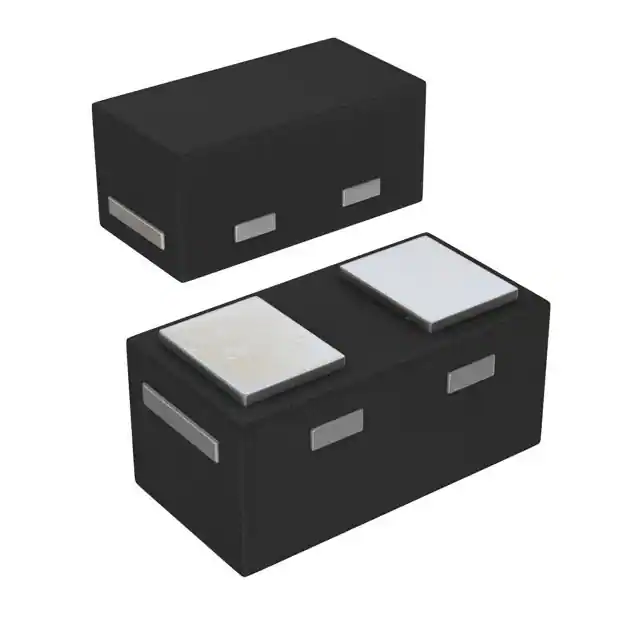

| Part Number | D5V0M1U2LP3-7 | D7V0M1U2LP3-7 | D5V0F1U2LP3-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 7V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6.2V | 7.5V | 6V |
| Voltage - Clamping (Max) @ Ipp | 11V | 13V | 10V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) | 7.5A (8/20µs) | 1.5A (8/20µs) |
| Power - Peak Pulse | 120W | 90W | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | HDMI |
| Capacitance @ Frequency | 55pF @ 1MHz | 45pF @ 1MHz | 0.5pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 |
