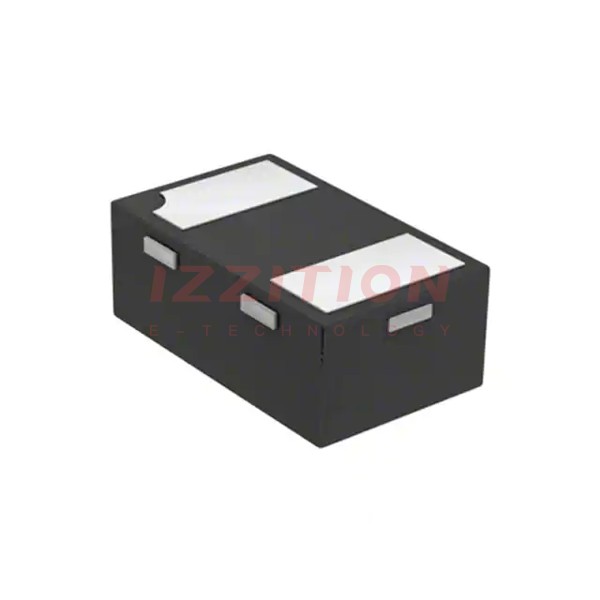

| Part Number | D5V0L1B2LPS-7B | D5V0L1B2LPSQ-7B | D5V0L1B2LP-7B | D5V0L1B2LP4-7B |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V | 14V | 14V | 14V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) | 6A (8/20µs) | 6A (8/20µs) | 6A (8/20µs) |
| Power - Peak Pulse | 84W | 84W | 84W | 84W |
| Power Line Protection | No | No | No | No |
| Applications | Automotive | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | 15pF @ 1MHz | 15pF @ 1MHz | 15pF @ 1MHz | 15pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-UFDFN | 2-UFDFN | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | U-DFN1006-2/SWP | U-DFN1006-2/SWP | X2-DFN1006-2 | X2-DFN1006-2 |
