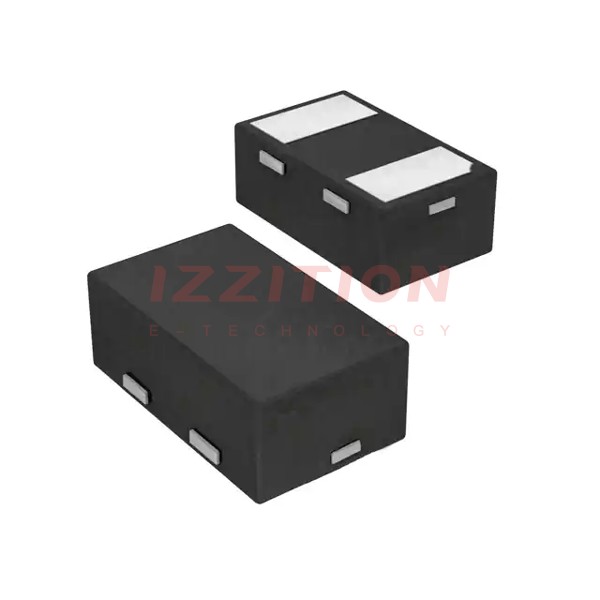

| Part Number | D5V0H1U2LP-7B | D5V0S1U2LP-7B | D7V0H1U2LP-7B | D15V0H1U2LP-7B | D5V0F1U2LP-7B | D5V0H1B2LP-7B |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | - |
| Bidirectional Channels | - | - | - | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 5.5V (Max) | 7V (Max) | 15V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6.2V | 6.2V | 7.5V | 16V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V | 13V | 14.4V | 27V | 12V | 12.5V |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) | 40A | 24A | 12A (8/20µs) | 1.5A (8/20µs) | 30A (8/20µs) |
| Power - Peak Pulse | 420W | 500W | 270W | 300W | - | 375W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | Automotive, HDMI, USB | General Purpose | General Purpose | Automotive, HDMI | General Purpose |
| Capacitance @ Frequency | 190pF @ 1MHz | 210pF @ 1MHz | 150pF @ 1MHz | 70pF @ 1MHz | 0.5pF @ 1MHz | 85pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 |
