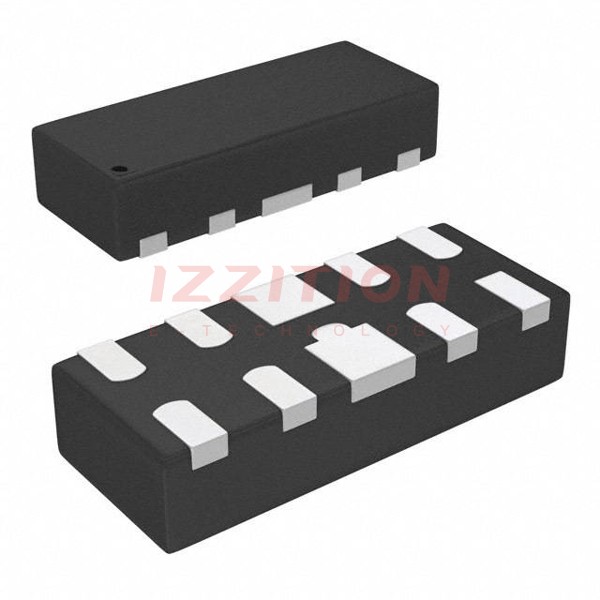

| Part Number | D5V0FS4U10LP-7 | D5V0F4U10LP-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Type | Zener | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | 4 |
| Bidirectional Channels | - | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 5.5V | 6V |
| Voltage - Clamping (Max) @ Ipp | 3V (Typ) | 12V |
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) | 1A (8/20µs) |
| Power - Peak Pulse | 20W | - |
| Power Line Protection | No | Yes |
| Applications | USB | HDMI |
| Capacitance @ Frequency | 0.45pF @ 1MHz | 0.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | U-DFN2510-10 | U-DFN2510-10 |
