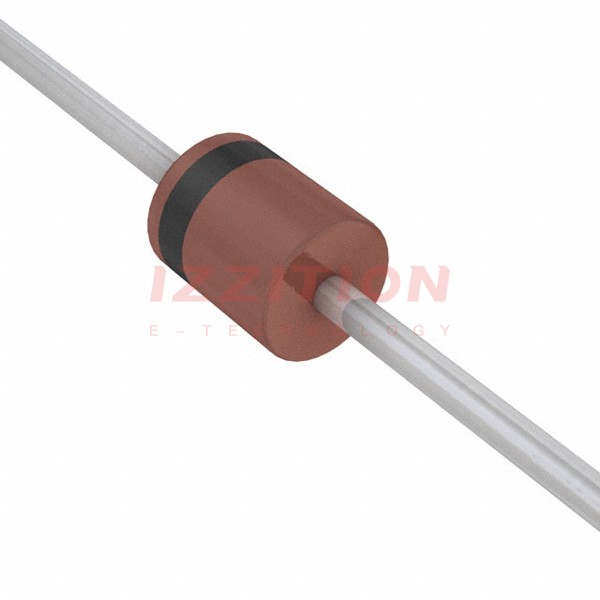

| Part Number | D4G-T | D5G-T | D6G-T | D7G-T | D1G-T | D2G-T | D3G-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 800 V | 1000 V | 50 V | 100 V | 200 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 800 V | 5 µA @ 1000 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V |
| Capacitance @ Vr, F | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 8pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | T1, Axial | T1, Axial | T1, Axial | T1, Axial | T1, Axial | T1, Axial | T1, Axial |
| Supplier Device Package | T-1 | T-1 | T-1 | T-1 | T-1 | T-1 | T-1 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
