| Part Number | D3V3X4U10LPQ-7 | D3V3F4U10LPQ-7 | D3V3X4U10LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Zener |
| Unidirectional Channels | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5.5V | 5.5V | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 6V | 3.5V (Typ) | 3V (Typ) |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | 5A (8/20µs) | 3A (8/20µs) |
| Power - Peak Pulse | 18W | 30W | 18W |
| Power Line Protection | No | No | No |
| Applications | Automotive | Automotive, USB | Automotive |
| Capacitance @ Frequency | 0.45pF @ 1MHz | 0.5pF @ 1MHz | 450pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

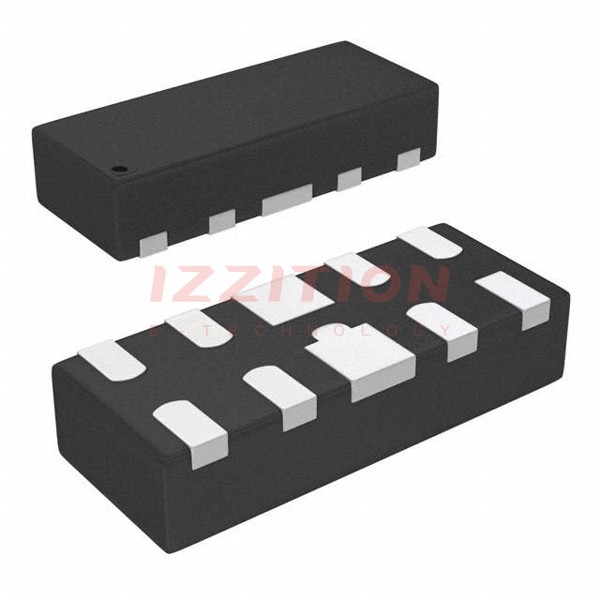

| Package / Case | 10-UFDFN | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | U-DFN2510-10 | U-DFN2510-10 | U-DFN2510-10 |
