Please send RFQ , we will respond immediately.

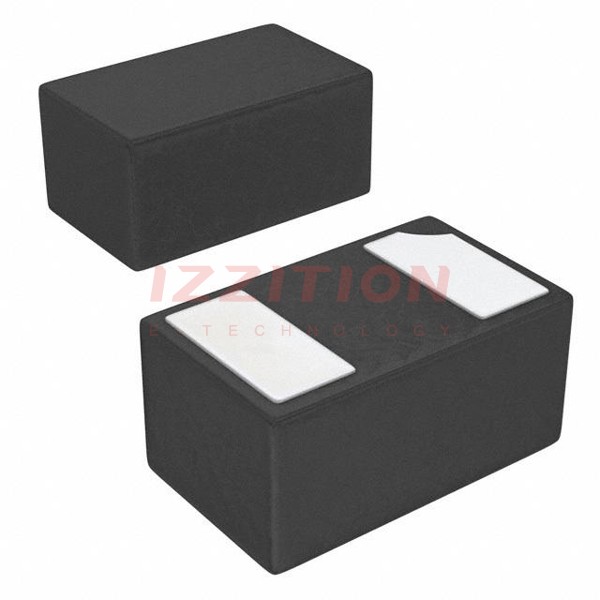

| Part Number | D22V0H1U2LP1610-7 | D12V0H1U2LP1610-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Type | Zener | Zener |
| Unidirectional Channels | 1 | 1 |
| Bidirectional Channels | - | - |
| Voltage - Reverse Standoff (Typ) | 22V (Max) | 12V (Max) |
| Voltage - Breakdown (Min) | 23.5V | 13V |
| Voltage - Clamping (Max) @ Ipp | 37V | 20V |
| Current - Peak Pulse (10/1000µs) | 28A (8/20µs) | 50A (8/20µs) |
| Power - Peak Pulse | 1000W (1kW) | 1000W (1kW) |
| Power Line Protection | No | No |
| Applications | General Purpose | General Purpose |
| Capacitance @ Frequency | 200pF @ 1MHz | 350pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1610 Metric) | 0603 (1610 Metric) |
| Supplier Device Package | U-DFN1610-2 (Type B) | U-DFN1610-2 (Type B) |
