Diodes Incorporated-D1G-T - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	D1G-T	D4G-T	D2G-T	D3G-T
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	50 V	400 V	100 V	200 V
Current - Average Rectified (Io)	1A	1A	1A	1A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1 A	1 V @ 1 A	1 V @ 1 A	1 V @ 1 A
Speed	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2 µs	2 µs	2 µs	2 µs
Current - Reverse Leakage @ Vr	5 µA @ 50 V	5 µA @ 400 V	5 µA @ 100 V	5 µA @ 200 V
Capacitance @ Vr, F	8pF @ 4V, 1MHz	8pF @ 4V, 1MHz	8pF @ 4V, 1MHz	8pF @ 4V, 1MHz
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	T1, Axial	T1, Axial	T1, Axial	T1, Axial
Supplier Device Package	T-1	T-1	T-1	T-1
Operating Temperature - Junction	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C

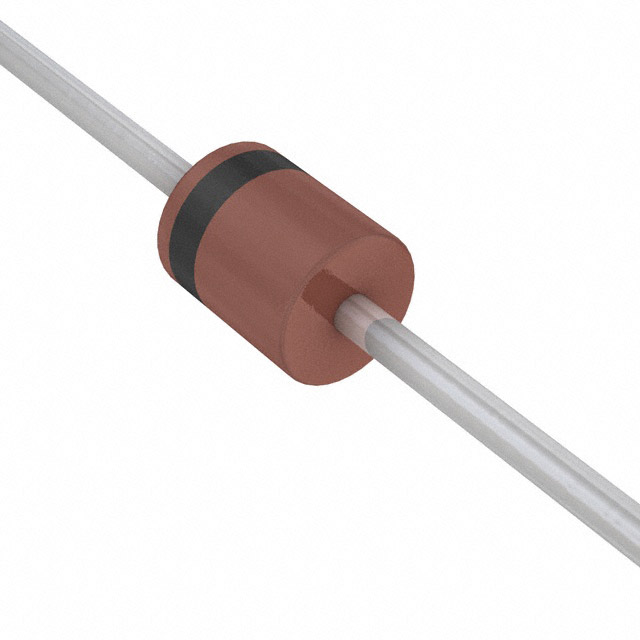

Diodes Incorporated D1G-T

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	50 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 1 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	2 µs
Current - Reverse Leakage @ Vr:	5 µA @ 50 V
Capacitance @ Vr, F:	8pF @ 4V, 1MHz
Mounting Type:	Through Hole
Package / Case:	T1, Axial
Supplier Device Package:	T-1
Operating Temperature - Junction:	-65°C ~ 150°C
